Decoding S460 Steel Shot

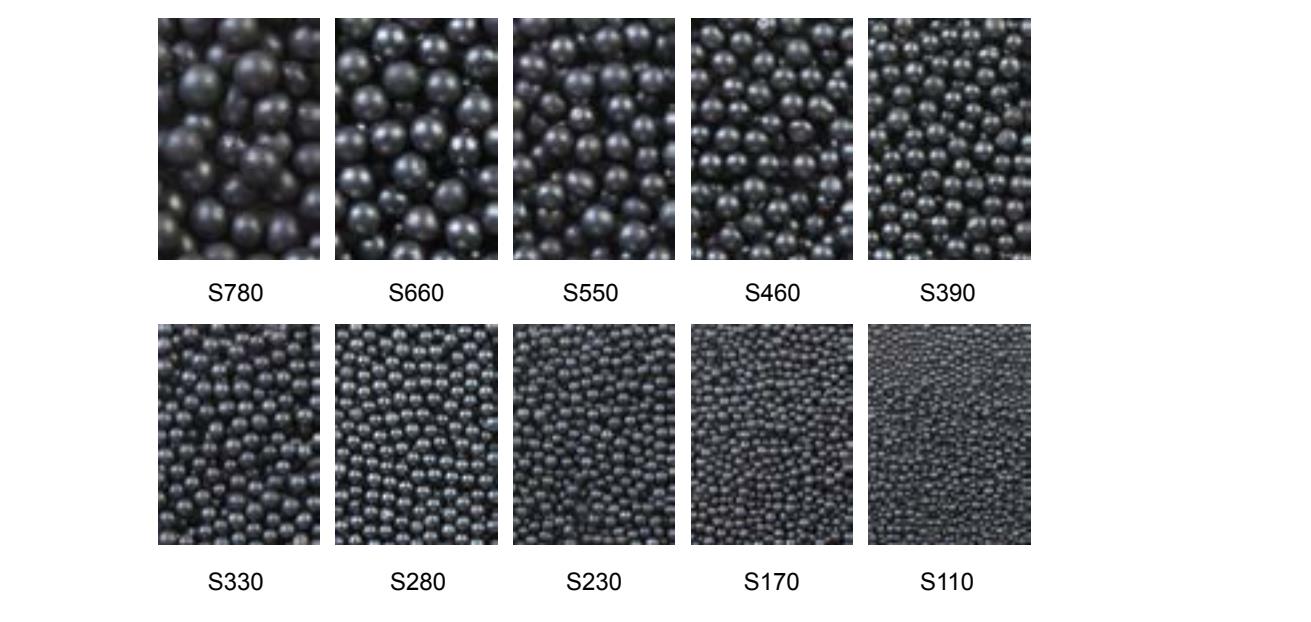

Naming and Classification
S460 steel shot belongs to the family of high - quality cast steel shots. The "S" in its name denotes its spherical shape, which is fundamental for achieving consistent and efficient blasting results. The number "460" typically refers to the average diameter of the shot particles, measured in micrometers. With an average diameter of around 1.4mm, S460 steel shot occupies a crucial position in the mid - size spectrum of steel shots, balancing the requirements of both delicate and heavy - duty surface treatments.
Composition and Properties
1.Chemical Constitution
S460 steel shot is primarily composed of high - carbon steel, with a carbon content usually ranging from 0.80% to 1.10%. This high - carbon composition is the cornerstone of its remarkable hardness and wear resistance.
It also contains alloying elements such as silicon (0.40 - 1.40%) and manganese (0.30 - 1.10%), which play a vital role in enhancing its mechanical properties. The levels of phosphorus and sulfur are strictly controlled, each being less than 0.05%, to ensure the shot's integrity and performance.
2.Physical Attributes
The hardness of S460 steel shot generally falls within the range of 38 - 48 HRC (Rockwell C). This hardness level enables it to effectively remove rust, scale, and other contaminants from various surfaces, making it an ideal candidate for surface preparation in industrial processes.
It features a uniform microstructure, often a combination of martensite and bainite, which contributes to its excellent toughness and durability. The presence of fine, evenly - distributed carbides further reinforces its mechanical strength.
S460 steel shot has a relatively high density, approximately 7.3g/cm³. This high density, combined with its spherical shape, provides the shot with substantial momentum when propelled at high speeds during blasting operations, resulting in efficient and thorough surface cleaning.
The Intricate Production of S460 Steel Shot
1.Raw Material Procurement
The production of S460 steel shot begins with the careful selection of high - quality raw materials. High - carbon steel, often in the form of pre - processed 1.4mm steel shots, is chosen as the base material. Premium - grade scrap steel, blended with the appropriate alloys and trace amounts of rare metals, is commonly used to ensure the desired chemical composition and mechanical properties of the final product.
2.Melting Process
The selected steel is melted in advanced induction furnaces at temperatures soaring between 1550 and 1600 °C. This high - temperature melting process is crucial as it ensures that the steel is fully liquefied, facilitating the subsequent atomization process. The precise control of temperature and melting time is essential to maintain the integrity of the steel's chemical composition.
3.Atomization and Solidification
Once in a molten state, the steel undergoes atomization. In this process, the liquid steel is forced through a precisely designed orifice, causing it to break into tiny droplets. These droplets are then rapidly cooled, typically in a water - based cooling medium. The rapid cooling rate promotes the formation of a fine - grained microstructure, which is characteristic of S460 steel shot and contributes to its superior mechanical properties.
4.Quality Assurance Protocols
Stringent quality control measures are implemented at every stage of the production process. In - house laboratories conduct comprehensive chemical analysis to verify the exact composition of the steel shot, ensuring that it adheres to the specified standards.
Hardness testing is carried out using state - of - the - art equipment to confirm that the shot's hardness falls within the required 38 - 48 HRC range. Density measurements are also performed to guarantee consistent density values, which are critical for the shot's performance in blasting applications.
Fatigue life testing is an integral part of the quality control process. This test evaluates the shot's durability under repeated use, simulating real - world blasting conditions. Some manufacturers also collaborate with external, accredited testing agencies, such as SGS, to conduct specialized tests, including abrasive wear resistance testing, to further validate the shot's performance.
Diverse Applications of S460 Steel Shot
Automotive Industry Applications
1.Pre - painting Surface Preparation
S460 steel shot is extensively used in the automotive industry for surface preparation before painting. It effectively eliminates rust, old paint layers, and contaminants from automotive parts, creating a clean and roughened surface. This enhanced surface profile significantly improves the adhesion of paint, resulting in a more durable and aesthetically pleasing finish on car bodies, engine components, and wheels.
2.Shot Peening for Component Strengthening
Shot peening with S460 steel shot is a common practice in the automotive sector to enhance the fatigue resistance of critical components like gears, shafts, and springs. By bombarding the surface of these components with the steel shot, compressive stresses are induced, which can increase their resistance to fatigue failure by up to 50%. This, in turn, extends the lifespan of the components, reducing maintenance costs and improving overall vehicle reliability.
Shipbuilding and Marine Applications
1.Hull Cleaning and Rust Removal
Ship hulls are constantly exposed to the harsh marine environment, leading to the formation of rust and the accumulation of barnacles. S460 steel shot is employed in abrasive blasting operations to clean the hulls thoroughly. Its high hardness and durability enable it to remove even the most stubborn rust and contaminants, preparing the hull surface for the application of anti - corrosion coatings. This process is crucial for maintaining the structural integrity of the ship and preventing costly damage due to corrosion.
2.Coating Surface Profiling
Before applying protective coatings to ship decks, superstructures, and other parts, S460 steel shot is used to create a suitable surface profile. The shot's controlled impact on the surface results in a uniform roughness that promotes excellent adhesion of the coating. This ensures that the coatings can withstand the corrosive effects of saltwater and other environmental factors, providing long - term protection to the ship's structure.
Manufacturing and Metal Fabrication Applications
1.Casting and Forging Cleaning
In the manufacturing and metal fabrication industries, S460 steel shot is an invaluable tool for cleaning castings and forgings. It efficiently removes sand, scale, and other impurities from the surface of these parts, improving their surface finish and making them ready for further machining or assembly. In foundries, it is particularly useful for cleaning iron and steel castings, both on the exterior and in hard - to - reach internal cavities.
2.Steel Structure Shot Blasting
For the construction of steel structures such as bridges and buildings, S460 steel shot is used in shot blasting processes. It effectively removes rust, mill scale, and other contaminants from steel beams, columns, and other structural components. The resulting clean and rough surface enhances the adhesion of paint and other protective coatings, thereby increasing the lifespan of the structures. This is especially important for structures that are exposed to the elements, as it helps to prevent corrosion and maintain the structural integrity over time.
Aerospace Industry Applications
1.Component Cleaning and Surface Treatment
The aerospace industry demands the highest standards of quality and reliability for its components. S460 steel shot is used to clean and prepare the surfaces of various aerospace parts, including engine components, landing gear parts, and airframe structures. It can effectively remove oxidation layers, contaminants, and improve the surface integrity, which is crucial for the performance of these high - precision components. The shot's ability to clean complex geometries without causing damage makes it an ideal choice for aerospace applications.
2.Shot Peening for Fatigue Resistance
Similar to the automotive industry, shot peening with S460 steel shot is used in the aerospace industry to improve the fatigue resistance of critical components. The extreme mechanical stresses experienced by aircraft components during flight require materials with exceptional fatigue strength. By inducing compressive stresses on the surface through shot peening, S460 steel shot helps these components withstand these stresses, ensuring the safety and reliability of aircraft in service.
The Advantages of S460 Steel Shot
1.High Cleaning Efficacy
The optimal hardness and density of S460 steel shot enable it to achieve rapid and thorough surface cleaning. It can quickly remove even the most tenacious rust, scale, and contaminants, reducing the time required for surface preparation. This high cleaning efficiency not only increases productivity but also allows for more efficient use of resources in industrial production processes.
2.Outstanding Durability
Thanks to its carefully engineered chemical composition and microstructure, S460 steel shot exhibits excellent wear resistance. It can endure repeated use in abrasive blasting operations without significant degradation, making it a cost - effective choice. In fact, it can withstand up to 3000 cycles of use in typical blasting applications, reducing the need for frequent replacement and minimizing overall operating costs.
3.Superior Rebound Characteristics
S460 steel shot demonstrates remarkable rebound resilience, allowing it to reach and clean complex shapes and internal corners effectively. This property is particularly valuable in applications where access to intricate surfaces is required, such as in the cleaning of castings with internal cavities or the shot peening of gears with complex tooth profiles. The shot's ability to rebound and re - impact the surface multiple times ensures comprehensive cleaning and treatment.
4.Eco - friendly and Non - toxic
Steel shot, including S460, is non - toxic and highly recyclable. It can be recycled up to 95% of its original mass, making it an environmentally friendly choice for industrial applications. This reduces waste generation and the need for continuous production of new abrasive media, contributing to a more sustainable manufacturing environment.
5.Versatility in Application
With its mid - range size and well - balanced properties, S460 steel shot is suitable for a wide variety of applications across different industries. Whether it's for light - duty surface cleaning in the electronics industry or heavy - duty shot peening in the aerospace industry, it has proven to be a versatile solution that can adapt to the specific requirements of each application.
In conclusion, S460 steel shot has firmly established itself as a high - performance abrasive blasting media with a broad range of applications and numerous advantages. Its unique combination of properties makes it an indispensable tool in various industries, contributing to improved product quality, increased production efficiency, and enhanced durability of manufactured goods and structures. As industries continue to evolve and demand more advanced surface treatment solutions, the importance of S460 steel shot is expected to grow, further revolutionizing the field of industrial surface treatments.
